How to adjust a primary fold belt

Use the link below for the steps to adjusting the primary fold belt on a FlexFold.

 Ⓘ NOTICE  Only qualified personnel familiar with the construction and operation of this equipment and the hazards involved should install, adjust, operate, and/or service this machine. Read and understand the manual in its entirety before proceeding. Failure to observe this precaution could result in severe bodily injury or loss of life. By proceeding, you are indicating that you acknowledge and agree that Foltex USA is not responsible for any damage to property or persons while accessing and/or using this service.

🔧 Tools you may need:    𝥀 metric hex key set     𝥀 screwdriver

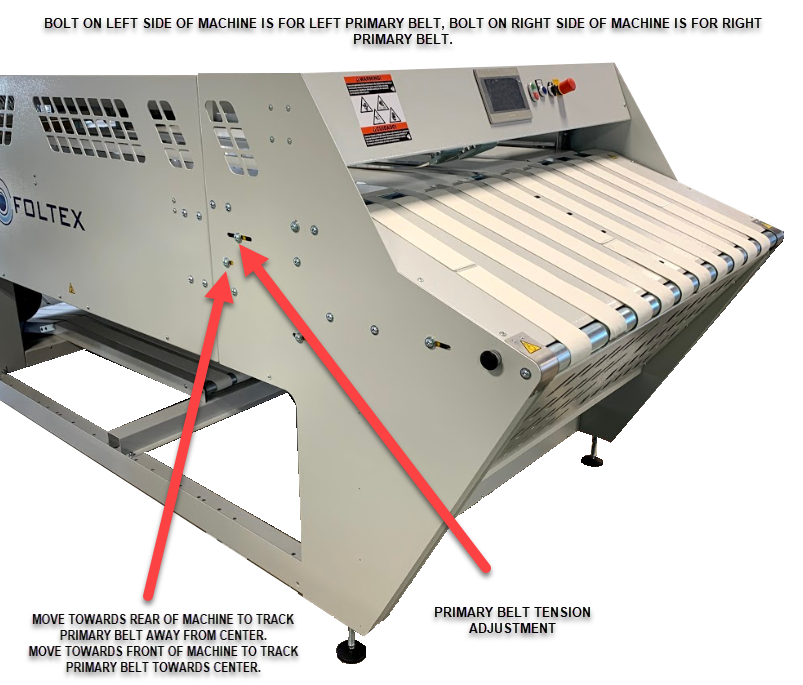

The tracking of a primary belt can be adjusted by moving the tracking roller located on the same side as the belt. See picture below for more information or click this link for a step by step instructional video.
